heavy duty
cattle guards
Our heavy duty cattle guards are constructed with 10" I-beams and 6" I-beam cross supports spaced 3' to 4' apart, and are topped with 2 7/8" diameter pipe. The 10" I-beams that run across the front and back, gives you something to push the gravel for the road against.
![Heavy Duty Cattle Guard](https://www.frontiersteelproductsllc.com/images/nicepage-images/og_cg_0199_710w.jpg)
Sizes
- 24' long x 8' wide - normally
- Can make any width
- Can make any custom size
Call us to learn more: 817-341-9500
features
![Heavy Duty Cattle Guard showing stabilizers and supports](https://www.frontiersteelproductsllc.com/images/nicepage-images/og_cg_1950030_577w.jpg)
Features
- Stabilizers are welded to each pipe at every cross member section to prevent weld breaks under the twisting motion caused by heavy vehicles.
- A 4" channel piece is welded under each cross member for added support to assure beam welds will stay intact under extreme loads.
- Steel angle strips cover all pipe ends to prevent water, waste, and varmints from entering and causing corrosive damage.
Call us to learn more: 817-341-9500
![Heavy duty cattle guard with endposts and swing gate](https://www.frontiersteelproductsllc.com/images/nicepage-images/og_cg_swing_gate_2013014_623_w.jpg)

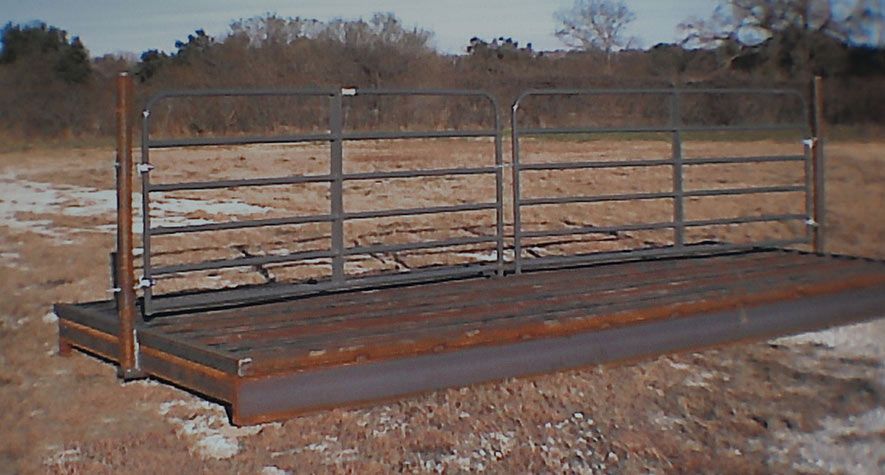

End Posts Available
End posts may be ordered to accommodate:
- fence connection -
- double tube gates -
- single swing gates -
Each end post has a base channel stabilizer support running from the end beam to the first cross member to prevent the post from swaying under stress.
![Alternate view of heavy duty cattle guard with endposts and swing gate](https://www.frontiersteelproductsllc.com/images/nicepage-images/og_cg_swing_gate_1589018_400_w.jpg)
